Back to MS MENU GN806020 -  600W  800H 200D


GN Electrical Enclosure Overview

GN806020 600 800 200 IP66 Mild steel electrical cabinet / enclosure / switchboard
Representative image		      The GN Series of electrical enclosures / cabinets are general purpose in nature and primarily used for the housing and protection of electrical / electronic control, intrumentation, motor control, HVAC, pneumatic, hydraulic, monitoring & distribution components.

    They are fit for use inside or outside* in Commercial, Domestic, Industrial, Residential & Retail environments (examples).



GN806020 - CONTENTS @ A GLANCE
Table of Contents ITEM DETAILS @ A GLANCE
FEATURES @ A GLANCE
ACCESSORIES @ A GLANCE
DIMENSIONED DWG @ A GLANCE
COMPONENTS @ A GLANCE
COOL SOLUTIONS @ A GLANCE
CONTACT US


GN806020 - ITEM DETAILS @ A GLANCE

Description: 600W x 800H x 200D mm, IP66 Mild Steel Enclosure, RAL 7035 Grey, C/w mounting plate & cable entry (s)

Width (mm): 600
Height (mm): 800
Depth (mm): 200
Colour: RAL 7035 Grey
Weight (kg): 27.9
Doors: 1
Locks: 2
Cable entry: 1
Resistance to
impact: Mechanical; IK10
Degree of
protection: Environmental; IP66 - NEMA 1, 4, 12
Load capacity: Total load = 325 kg, Door: 25 kg, M/Plate: 300 kg.

Finish:  Ripple, hardened polyester powder coat, 80 ~ 120 μ, ripple pattern, UV tolerant, RAL 7035 grey.
Material:  Enclosure > Cold - rolled steel (EN 10130+A1), 1.2mm to 600H x 600W, 1.5mm above
Enclosure Door > 1.2mm to 500mm H, 1.5mm 600 ~ 800mm H, 2.0mm above.
Gland plate > Qty = 1, Cable entry = 500W x 140D
Mounting Plate > Galvanised sheet steel, 2mm, 800 mm & above have strengthening returns on either side.
Protection: Environmental; IP66 - NEMA 1, 4, 12
* Corrosion resistance according to the UNE-EN 62208 standard.
For outdoor installations the use of a canopy is recommended.
The effect of corrosion must be taken into consideration
Mechanical; IK10
Approvals  CE marking is a certification mark UL (safety organization) Bureau Veritas
/Certs*:
  * According to low tension directive 2014/35/EU.
  Norms: UNE-EN 62208 and UNE-EN 61439-1 (in the affected part).

  Certificate UL508A.
  Bureau Veritas under norms UNE-EN 62208:2003 and UNE-EN 60529 (only for single door cabinets).



ITEM FEATURES @ A GLANCE

1.5mm Body and Door fully welded with folded front profile.
Wall mounting holes provision for in the rear body section  GN Enclosure Series from Peekn Services
Enclosure supplied with gland plate (s).
RAL 7035 UV Hardened Light Grey as standard, select models available in RAL 2008 Orange.
Enclosure supplied with gland plate (s). (shown @ top in image).
Sealed hinge / accessory fixing points either side for swapping the door hingeing.
Double bit lock insert as standard, can be replaced (see accessories).
Single point locking 400H & below, 2 point locking 500 ~ 800, 3 Point locking for 1000H + & double door enclosures. (see also"K" below).
2mm Internal mounting plate / gear tray.
Fully foamed in PU Gasket that provides IP66 Protection.
The door opening angle is 1100 as standard, they are fully reversible and mounted with concealed hinges, A door earthing stud is available.
  Pre-drilled support rails on door which additionally allow the fixing of door cross rails which can be used for component / wiring looms / cable management.

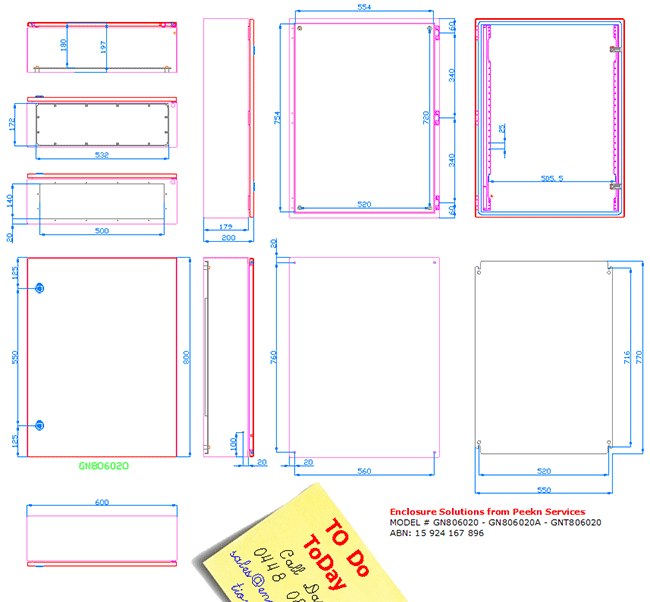

GN DIMENSIONS @ A GLANCE

GN806020-Dimensioned-CAD-Drawing-MSB806020G
Click on a link below for the BIG PICTURE or CAD File

DIMENSIONS> GN806020 CAD BLOCK / DIMENSIONED CAD DRAWING (.gif format) MSB806020G GN806020 CAD BLOCK / DIMENSIONED CAD DRAWING (.pdf format) MSB806020G GN806020 CAD BLOCK / DIMENSIONED CAD DRAWING (.dwg format) MSB806020G GN806020 CAD BLOCK / DIMENSIONED CAD DRAWING (.dxf format) MSB806020G



ACCESSORIES @ A GLANCE

FIXING ACESSORIES FOR GN ENCLOSRES

GNWB - Wall Mounting Brackets to suit IDE Argenta Enclosures - WMB 48423 GNWB - Wall mounting brackets
Used to wall mount the enclosure with an 11mm seperation
Maximum vertical (or horizontal) load capacity of 490 kg
Material: Galvanised steel
1 Unit = pack, 4 adjustable supports
Part # GNWB - 48423 (dims)
Pole Mounting kit to suit GN Series Enclosures GNPMK - Pole mounting kit
Suits enclosures 300 ~ 800mm Wide
Effective diameter; 60 ~ 200mm, max load = 130 kg
Material: Galvanised steel
1 Unit = pack, 2 brackets + fixing accessories.
Part #  - PMK 48420
Plinth / Base to suit the GN Series of industrial electrical cabinets and enclosures.


Representative image only		 GNPL - 100mm Plinth / Base

A Plinth is not available for this enclosure size


Part # N/A (Please click here for a list of plinth sizes & compatible enclosure models)


LOCK OPTIONS FOR GN ENCLOSURES

GN KLA333 Lock options for GN Enclosures
Keyed cylinder to replace existing double bit lock insert
Suits single door enclosures, not suitable for use on enclosures with 3 Point locking.
Supply includes cylinder keyed 333, 1 key
Part # GNKLA333


GNKLW333 Keyed Wing Handle Keyed Wing Handle to replace existing double bit lock insert.
Suits all GN Series enclosures
Supply includes cylinder keyed 333, 1 key

Part # GNKLW333


T Handle to suit GN Enclosures T Handles / Padlockable Handle
Suitable for use with all enclosures.
THNL - T Handle, Non locking, chome plated.
THKA - T Handle, keyed alike, 2 keys, chome plated.
TH92268 - T Handle, keyed 92268, 2 keys, chome plated.
THCL001 - T Handle, keyed CL001, 2 keys, chome plated.
LH-PAD - L Handle with padlock facility.

ACCESSORIES FOR THE TOP PANEL

GNEB GNLEB - Lifting eye bolts
Fitted with M12 nuts.
Cannot be used in conjuction with a rain canopy
Material: Galvanised steel
1 Unit = pack, 2 bolts + brackets / cast
Part # GNLEB - LEB 48475

CAD-Dimensioned-Drawing-Rain-Canopy-GNRC6020-TEJ6020G Representative image only GNRC - Rain canopies
Used to minimize the effects of rain and air-born contaminants (detrtitus) on the PU seal at the top of the cabinet.  The top of the enclosure is protected front, back and both sides.
This is "manufacturer recommended" for outdoor applications.
Material: RAL 7035 painted
Part # GNRC6020
DIMENSIONS> GNRC6020 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.gif format) TEJ6020G GNRC6020 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.pdf format) TEJ6020G GNRC6020 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.dwg format) TEJ6020G GNRC6020 RAIN CANOPY CAD BLOCK / DIMENSIONED CAD DRAWING (.dxf format) TEJ6020G


INTERNAL ACESSORIES FOR GN ENCLOSURES


Inner Door / Hinged Escutcheon GNID8060 / IDE PIN8060 to suit industrial enclosure model #'s IDE ARGENTA GN806020, IDE ARGENTA GN806020A, IDE ARGENTA GN806025, GN806030, GN806030A, MSB806020G, MSB806020A, MSB806025G, MSB806030G, MSB806030A Representative image only GNID - Inner door / hinged escutcheon
Reversible hinges and 900 opening.
Min clearance = 58mm, max = (D-52 mm) to front door.
Material: RAL 7035 painted
*Requires DAB... to suit enclosure depth for mounting.
Part # GNID4040 / IDE PIN4040

DIMENSIONS> CAD Dimensioned DWG BLOCK - Inner Door / Hinged Escutcheon GNID8060 / PIN8060 to suit IDE ARGENTA GN806020 (.gif format) CAD Dimensioned DWG BLOCK - Inner Door / Hinged Escutcheon GNID8060 / PIN8060 to suit IDE ARGENTA GN806020 (.pdf format) CAD Dimensioned DWG BLOCK - Inner Door / Hinged Escutcheon GNID8060 / PIN8060 to suit IDE ARGENTA GN806020 (.pdf format) CAD Dimensioned DWG BLOCK - Inner Door / Hinged Escutcheon GNID8060 / PIN8060 to suit IDE ARGENTA GN806020 (.dxf format)

128 Pole DIN Modular Chassis / Frame GNDI8620-128 - IDE CK8060/1520 to suit IDE ARGENTA GN806020, IDE ARGENTA GN806020A, IDE ARGENTA GN806025, GN806030, GN806030A, Representative image only GNDI - DIN Frame / Chassis & Escutcheon
Zinc plated Chassis to suit DIN 43880 components (typical MCB Size), powder coated "Removable" slotted cover / escutcheon and fixing kit supplied.
Capacity: 45 DIN Modules, 3 x Rows @ 15 modules / row
Hint See GNDI Kit solutions for Enclosure + frame
 Part # GNID4420-45 / IDE CH4040/1520


DIMENSIONS> CAD Dimensioned DWG BLOCK - DIN Modular Chassis GNDI8620-128 / CK8060/1520 to suit IDE ARGENTA GN806020, MSB806020G (.gif format) CAD Dimensioned DWG BLOCK - DIN Modular Chassis GNDI8620-128 / CK8060/1520 to suit IDE ARGENTA GN806020, MSB806020G (.pdf format) CAD Dimensioned DWG BLOCK - DIN Modular Chassis GNDI8620-128 / CK8060/1520 to suit IDE ARGENTA GN806020, MSB806020G (.dwg format) CAD Dimensioned DWG BLOCK - DIN Modular Chassis GNDI8620-128 / CK8060/1520 to suit IDE ARGENTA GN806020, MSB806020G (.dxf format)

Mounting Plate Depth Adjustment Bracket DAB150 / IDE SP150 to suit 150 Deep IDE Argenta GN Series of Industrial Electrical enclosures / cabinets / switchboards DAB - Mounting plate adjustment brackets
Can be used to adjust the height of the mounting plate in increments of 12.5mm
Required for the installation of inner doors.
Material: Galvanised steel
1 Unit = pack, 4 adjustable supports
Part # DAB200
DIMENSIONS>

COMPONENTS @ A GLANCE

    The GN Series of enclosures are complemented by a wide range of components that are available for you to include in your project.
    Please see below a very brief overview of typical electrical components used within our enclosure ranges.
    Please Note: This list is not extensive, please contact us with your enquiries for other items that we may also be able to supply.


Electrical Components for Enclosures from Peekn Services DIN Rail Electrical Components for Enclosures from Peekn Services
Terminal Blocks
Ducting
MCB's
RCD's
RCBO's
Main Switches
Isolators
Relays
Contactors
Surge Protection
Emergency Lighting
kWh Meters
Analogue Meters
Push Buttons, Selector Switches, Indicator Lights, Emergency Stop stations, Labels, Earth Bars, Neutral Links, IP66 Switchgear etc. etc.


COOL SOLUTIONS @ A GLANCE

    Feeling the Heat? (or not enough)?.  Our enclosure solutions include industrial climate control components such as Ventillation Louvres, Fan filter untits, Filter Units Fan & Filter units, Anti-condensation Heaters, Heat Exchangers, Air Conditioners, Thermostats, Hygrostats, Fan speed controllers, Enclosure Climate Monitorig & Control (web).
  COOL CALCS
Climat Control Calculations Is the HEAT ON with your Project?
We offer an obligation free climate control calculation service, have a look at the following linked PDF to see what we need to help you.
Enclosure_Solutions_Cool_Calcs.PDF

CONTACT US @ A GLANCE

    Thank you for visting our site, Your interest in our products is appreciated and we look forward to meeting (if not exceeding) your product / service expectations.

    Your feedback, comments, questions, suggestions are always appreciated, please feel free to request pricing & availability or let us know if we are missing some information that you.

    We look forward to hearing from you soon.
