PSKLS Terminal / Junction Boxes |
| The PSKLS Series is a range (19 models) of 304 & 316 stainless steel terminal / junction / project boxes which are IP66, read on.... |
PSKLS Terminal Boxes @ A Glance |
| Please see below for an overview of sizes and accessories, features, accessories & resources available. |
 |
PSKLS Series - IP66 Mild Steel Terminal / Junction Boxes |
| 16 Models, Brushed, grain 180 | |
| 150 x 150 x 95 ~ 600 x 400 x 135 | |
| Supply includes: Terminal Box Only | |
| Available accessories include: Wall mounting Brackets, Mounting plates | |
| Please see item details for more information | |
PSKLS Dimensions @ A Glance |
| Please see below for an overview of sizes and accessories, features, accessories & resources available. |
| Model # | Width | Height | Depth | IP | Material | Description |
| Stainless Steel 1.4301 ( AISI 304) | ||||||
| PSKLS151580-4 | 150 | 150 | 80 | 66 | 304 | Term. Box, Stainless |
| PSKLS151512-4 | 150 | 150 | 120 | 66 | 304 | Term. Box, Stainless |
| PSKLS202080-4 | 200 | 200 | 80 | 66 | 304 | Term. Box, Stainless |
| PSKLS202012-4 | 200 | 200 | 120 | 66 | 304 | Term. Box, Stainless |
| PSKLS301580-4 | 300 | 150 | 80 | 66 | 304 | Term. Box, Stainless |
| PSKLS302080-4 | 300 | 200 | 80 | 66 | 304 | Term. Box, Stainless |
| PSKLS302012-4 | 300 | 200 | 120 | 66 | 304 | Term. Box, Stainless |
| PSKLS303012-4 | 300 | 300 | 120 | 66 | 304 | Term. Box, Stainless |
| PSKLS402012-4 | 400 | 200 | 120 | 66 | 304 | Term. Box, Stainless |
| PSKLS403012-4 | 400 | 300 | 120 | 66 | 304 | Term. Box, Stainless |
| Stainless Steel 1.4304 ( AISI 316) | ||||||
| PSKLS151580-6 | 150 | 150 | 80 | 66 | 316 | Term. Box, Stainless |
| PSKLS202080-6 | 200 | 200 | 80 | 66 | 316 | Term. Box, Stainless |
| PSKLS301580-6 | 300 | 150 | 80 | 66 | 316 | Term. Box, Stainless |
| PSKLS302080-6 | 300 | 200 | 80 | 66 | 316 | Term. Box, Stainless |
| PSKLS303012-6 | 300 | 300 | 120 | 66 | 316 | Term. Box, Stainless |
| PSKLS402012-6 | 400 | 200 | 120 | 66 | 316 | Term. Box, Stainless |
PSKLS Orientation @ A Glance |
|
CAD Drawings / Images will be added to each Terminal Box
Model No. when time allows, please do not hessitate to ask (as
they need to be / will be done regardless). |

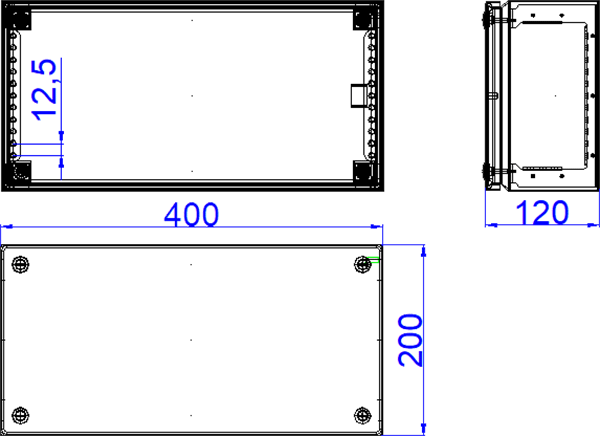

 PSKLS402012-6 (400W x 200H x 120D) shown as a reference only |
How can we help you? |
| Your visit has been appreciated and we look forward to your comments / enquiries. |
| Please leave us a message below or call us on 0448 085 061 to discuss your application. |
 |
| The PSKLS151580-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 150W 150H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1521010 |
| The PSKLS151512-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 150W 150H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522710 |
| The PSKLS202080-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 200W 200H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1523010 |
| The PSKLS202012-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 200W 200H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522810 |
| The PSKLS301580-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 300W 150H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522010 |
| The PSKLS302080-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 300W 200H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1524010 |
| The PSKLS302012-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 300W 200H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522910 |
| The PSKLS303012-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 300W 300H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522610 |
| The PSKLS402012-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 400W 200H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522510 |
| The PSKLS403012-4 is a IP66, 1.4301 (AISI 304) Stainless Steel Terminal / Project / junction box with dimensions of 400W 300H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1530010 |
| The PSKLS151580-6 is a IP66, 1.4404 (AISI 316L) Stainless Steel Terminal / Project / junction box with dimensions of 150W 150H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1521510 |
| The PSKLS202080-6 is a IP66, 1.4404 (AISI 316L) Stainless Steel Terminal / Project / junction box with dimensions of 200W 200H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1523510 |
| The PSKLS301580-6 is a IP66, 1.4404 (AISI 316L) Stainless Steel Terminal / Project / junction box with dimensions of 300W 150H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1522510 |
| The PSKLS302080-6 is a IP66, 1.4404 (AISI 316L) Stainless Steel Terminal / Project / junction box with dimensions of 300W 200H 80D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1524510 |
| The PSKLS303012-6 is a IP66, 1.4404 (AISI 316L) Stainless Steel Terminal / Project / junction box with dimensions of 300W 300H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1526510 |
| The PSKLS402012-6 is a IP66, 1.4404 (AISI 316L) Stainless Steel Terminal / Project / junction box with dimensions of 400W 200H 120D (mm) and is typically used to house electrical / electronic control devices, terminal blocks, switchgear etc.. It is similar in size and application to a KL 1525510 |
