Enclosure solutions for professionals

316 Stainless Enclosures

    Stainless steel enclosure solutions from Peekn Services include push button stations, IP66 & IP67 terminal / project / junction boxes, wall mounted industrial electrical enclosures & sloped roof enclosures, all this before we come to locally custom made sizes (including free standing).  Please read on...

    Please note, this page is still work in progress, specific data has not been uploaded as yet so please feel free to ask any questions you may have.


CSPBS IP66 316 Stainless Steel Push Button station

CSPBS Series - IP66 316 Stainless Steel Push Button Stations
12 Models,1.2mm, 316 Stainless Steel
120H x 120W x 90D ~ 220 (320) H x 120 (180) w x 90 D
Supply includes: Enclosure, Internal Mounting Plate, Wall Mounting Plate
Available accessories include: 22mm Pilot Devices, I.E. Push buttons, Selector switches, Indicator lamps ETC.

CSTB Series IP66 316 Stainless Terminal Boxes

CSTB Series - IP66 316 Stainless Steel Terminal / Junction Boxes
13 Models,1.2mm, 316 Stainless Steel
150H x 150W x 80D ~ 300W x 400H x 120D
Supply includes: Enclosure, DIN rail mounting rail, Mounting plate
Available accessories include:

PSKLS IP66 304 Stainless Terminal Boxes

PSKLS Series - IP66 304 / 316 Stainless Steel Terminal / Junction Boxes
16 Models,1.2mm, (model -4) 304 / (model -6) 316 Stainless Steel
150W x 150H x 80D ~ 400W x 300H x 120D
Supply includes: Enclosure
Available accessories include: Wall mounting Brackets, Mounting plates

CSTSL IP67 316 Stainless Terminal Boxes

CSTSL Series- IP67 316 Stainless Steel Terminal / Junction Boxes
5 Models,1.2mm, 316 Stainless Steel
90H x 90W x 85D ~ 300H x 400W x 150D
Supply includes: Enclosure, Mounting plate, External wall mounting holes, Externally (to seal) fixed cover
Available accessories include:

CSS Series IP66 316 Stainless Steel Enclosure

CSS  Series - IP66 316 Stainless Steel Wall Mounted Enclosures (Single Door)
46 Models, 1.5mm Stainless Steel
150W x 150W x 150D ~ 1000W x 1000H x 400D
Supply includes: Enclosure, hinged lockable door, Internal mounting plate, wall mounting brackets
Available accessories include: , xxx Mounting plates

CSS Series IP66 316 Stainless Steel Enclosure

CSCB  Series - IP66 Custom - Built, 316 Stainless Steel Wall Mounted Enclosures
Custom Built to specifications.
xxxH x 150W x 80D ~ 300W x 800H x 155D
Supply includes: Enclosure, lockable door, Internal mounting plate, wall mounting brackets
Available accessories include: , xxx Mounting plates

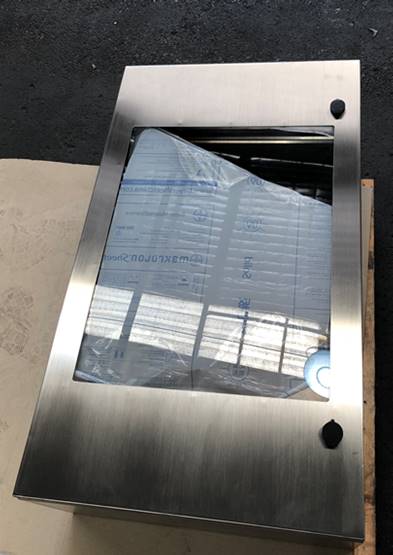

CSW  Series - IP66 316 Stainless Steel Wall Mounted Enclosures with Window
Fitted locally to specifications.
please see CSS for sizes
Supply includes: Enclosure, lockable door, Internal mounting plate, wall mounting brackets
Available accessories include: , xxx Mounting plates

CSID-K Series 316 Stainless Enclosures, Inner Door Kit

CSID-K  Series - IP66 316 "C/- Inner Door" Stainless Steel Wall Mounted Enclosures (KIT)
22 Models,Texture powder coated RAL 7035
xxxH x 150W x 80D ~ 300W x 800H x 155D
Supply includes: Enclosure, lockable door, Internal mounting plate, wall mounting brackets
Available accessories include: , xxx Mounting plates

CSSR Series- IP66- IP66 316 "Sloped Roof" Stainless Steel Wall Mounted Enclosures

CSSR  Series- IP66- IP66 316 "Sloped Roof" Stainless Steel Wall Mounted Enclosures
15 Models,Texture powder coated RAL 7035
300 (510) H x 200W x 150 (180) D ~ 1200 (1410) H x 800W x 300 (330) D
Supply includes: Enclosure, lockable door, Internal mounting plate, wall mounting brackets
Available accessories include: , xxx Mounting plates






Model # Width Height Depth IP Description
CSTB909085-67 90 90 85 67 Term. Box, Stainless
CSTB902185-67 90 215 85 67 Term. Box, Stainless
CSTB151580 150 150 80 66 Term. Box, Stainless
CSTB151512 150 150 120 66 Term. Box, Stainless
CSTB153080 150 300 80 66 Term. Box, Stainless
CSTB153012 150 300 120 66 Term. Box, Stainless
CSTB202080 200 200 80 66 Term. Box, Stainless
CSTB202012 200 200 120 66 Term. Box, Stainless
CSS202015 200 200 150 66 Encl, Stainless
CSTB203080 200 300 80 66 Term. Box, Stainless
CSTB203012 200 300 120 66 Term. Box, Stainless
CSS203015 200 300 150 66 Encl, Stainless
CSR203015 200 300 150 66 SR Encl, Stainless
CSS203020 200 300 200 66 Encl, Stainless
CSTB204080 200 400 80 66 Term. Box, Stainless
CSTB204012 200 400 120 66 Term. Box, Stainless
CSTB212185-67 210 210 85 67 Term. Box, Stainless

Model # Width Height Depth IP Description

CSTB303015-67 300 300 150 67 Term. Box, Stainless
CSTB303015 300 300 150 66 Term. Box, Stainless
CSS303015 300 300 150 66 Encl, Stainless
CSS303020 300 300 200 66 Encl, Stainless
CSTB304080 300 400 80 66 Term. Box, Stainless
CSTB304012 300 400 120 66 Term. Box, Stainless
CSS304015 300 400 150 66 Encl, Stainless
CSR304015 300 400 150 66 SR Encl, Stainless
CSS304020 300 400 200 66 Encl, Stainless
CSS304025 300 400 250 66 Encl, Stainless

Model # Width Height Depth IP Description

CSTB403015-67 400 300 150 67 Term. Box, Stainless
CSS403020 400 300 200 66 Encl, Stainless
CSS404020 400 400 200 66 Encl, Stainless
CSR404020 400 400 200 66 SR Encl, Stainless
CSS404025 400 400 250 66 Encl, Stainless
CSS404030 400 400 300 66 Encl, Stainless
CSS404520 400 450 200 66 Encl, Stainless
CSS405025 400 500 250 66 Encl, Stainless
CSS405030 400 500 300 66 Encl, Stainless
CSS406020 400 600 200 66 Encl, Stainless
CSR406020 400 600 200 66 SR Encl, Stainless
CSS406025 400 600 250 66 Encl, Stainless
CSS406030 400 600 300 66 Encl, Stainless
CSS406040 400 600 400 66 Encl, Stainless
CSS406520 400 650 200 66 Encl, Stainless
CSS407020 400 700 200 66 Encl, Stainless

Model # Width Height Depth IP Description

CSS454520 450 450 200 66 Encl, Stainless
CSS505020 500 500 200 66 Encl, Stainless
CSS505030 500 500 300 66 Encl, Stainless
CSS506025 500 600 250 66 Encl, Stainless
CSS506030 500 600 300 66 Encl, Stainless
CSS507030 500 700 300 66 Encl, Stainless
CSS604020 600 400 200 66 Encl, Stainless
CSS604030 600 400 300 66 Encl, Stainless
CSS604520 600 450 200 66 Encl, Stainless
CSS606020 600 600 200 66 Encl, Stainless
CSS606025 600 600 250 66 Encl, Stainless
CSRE606025 600 600 250 66 SRE Encl, Stainless
CSS606030 600 600 300 66 Encl, Stainless
CSRE606030 600 600 300 66 SRE Encl, Stainless
CSS606040 600 600 400 66 Encl, Stainless

Model # Width Height Depth IP Description

CSS608020 600 800 200 66 Encl, Stainless
CSS608025 600 800 250 66 Encl, Stainless
CSRE608025 600 800 250 66 SRE Encl, Stainless
CSS608030 600 800 300 66 Encl, Stainless
CSRE608030 600 800 300 66 SRE Encl, Stainless
CSS608040 600 800 400 66 Encl, Stainless
CSRE6010025 600 1000 250 66 SRE Encl, Stainless
CSS6010030 600 1000 300 66 Encl, Stainless
CSRE6010030 600 1000 300 66 SRE Encl, Stainless
CSRE6012025 600 1200 250 66 SRE Encl, Stainless
CSRE6012030 600 1200 300 66 SRE Encl, Stainless
CSS808025 800 800 250 66 Encl, Stainless
CSS808030 800 800 300 66 Encl, Stainless
CSRE808030 800 800 300 66 SRE Encl, Stainless
CSS8010020 800 1000 200 66 Encl, Stainless
CSS8010030 800 1000 300 66 Encl, Stainless
CSRE8010030 800 1000 300 66 SRE Encl, Stainless
CSS8012030 800 1200 300 66 Encl, Stainless
CSRE8012030 800 1200 300 66 SRE Encl, Stainless
CSS8012040 800 1200 400 66 Encl, Stainless
CSS10010030 1000 1000 300 66 Encl, Stainless
